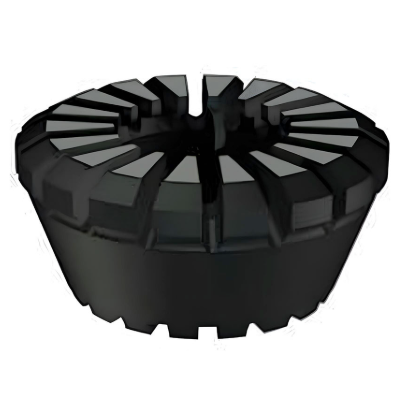

Annular BOP Packing Element
API 16A Annular BOP Packing Element for Oilfield Well Control Systems
SD Hydril manufactures high-performance Annular BOP Packing Elements designed for oil and gas drilling operations, well control systems, and pressure control applications.
Our packing elements are engineered for reliable sealing performance under high-pressure and high-temperature drilling environments. Available in spherical type and tapered type designs, SD Hydril packing elements are interchangeable with major annular BOP brands including Hydril, Shaffer, Cameron and other OEM well control equipment manufacturers.
Manufactured with premium elastomer materials and reinforced metal inserts, our BOP packing elements provide excellent wear resistance, extrusion resistance, and long service life.
Product Overview
The Annular BOP Packing Element is the key sealing component installed inside an annular blowout preventer.
During drilling operations, the packing element closes around:
- Drill pipe
- Drill collars
- Tool joints
- Casing
- Open hole sections
to prevent uncontrolled release of formation pressure and maintain well control safety.
Annular BOP packing elements are widely used in:
- Oil drilling rigs
- Gas drilling operations
- Workover operations
- Geothermal drilling
- Offshore drilling platforms
Types of Annular BOP Packing Elements
Spherical Packing Element (FH Series)
The spherical packing element provides excellent sealing performance through radial compression toward the center of the bore.
Features:
- High sealing reliability
- Long service life
- Suitable for frequent opening and closing operations
- Excellent stripping performance
Available models:
- FH18 Series
- FH23 Series
- FH28 Series
- FH35 Series
- FH48 Series
- FH53 Series
Tapered Packing Element (GK / GX Series)
The tapered packing element uses a conical sealing design, reducing wear during operation and improving service life.
Features:
- Lower operating friction
- Better wear resistance
- Suitable for high-cycle drilling operations
- Easy replacement and maintenance
Available models:
- GK Series
- GX Series
Product Features
High Quality Elastomer Material
SD Hydril packing elements are manufactured using premium rubber compounds:
- Natural Rubber (NR)
- Nitrile Rubber (NBR)
- Hydrogenated Nitrile Rubber (HNBR)
- Customized elastomer materials
Benefits:
- Excellent elasticity
- High temperature resistance
- Oil and drilling fluid resistance
- Improved sealing performance
Reinforced Metal Frame Design
Internal steel reinforcement provides:
- High structural strength
- Anti-extrusion capability
- Stable deformation control
- Extended operating life
Excellent Pressure Sealing Performance
Designed for demanding drilling environments:
- High pressure wells
- Deep drilling applications
- Sour gas environments
- Harsh drilling fluids
Technical Specifications
| Item | Specification |
|---|---|
| Product Name | Annular BOP Packing Element |
| Standard | API Spec 16A |
| Type | Spherical / Tapered |
| Series | FH / GK / GX |
| BOP Size | 7-1/16″, 11″, 13-5/8″, 16-3/4″, 18-3/4″, 20-3/4″, 21-1/4″ |
| Working Pressure | 2,000 PSI – 15,000 PSI |
| Temperature Range | -45°C to 180°C |
| Material | NR / NBR / HNBR / Customized |
| Application | Annular Blowout Preventer |
Compatible BOP Brands
SD Hydril Annular BOP Packing Elements are designed as replacements for:
- Hydril Annular BOP
- Shaffer Annular BOP
- Cameron Annular BOP
- NOV Well Control Equipment
- Other API 16A compliant BOP systems
Available Models
| BOP Size | Pressure Rating | Packing Element Type |
|---|---|---|
| 7-1/16″ | 3,000 PSI / 5,000 PSI | FH / GK |
| 9″ | 5,000 PSI | FH |
| 11″ | 3,000 PSI / 5,000 PSI / 10,000 PSI | FH / GK / GX |
| 13-5/8″ | 3,000 PSI / 5,000 PSI / 10,000 PSI | FH / GK / GX |
| 16-3/4″ | 5,000 PSI | GK |
| 18-3/4″ | 10,000 PSI | FH / GX |
| 20-3/4″ | 3,000 PSI | FH |
| 21-1/4″ | 2,000 PSI / 5,000 PSI | GK |
Manufacturing & Quality Control
Each SD Hydril BOP packing element is inspected through strict quality control procedures:
Material Testing
- Rubber compound testing
- Hardness testing
- Tensile strength testing
- Temperature resistance testing
Dimensional Inspection
- Bore size inspection
- OD measurement
- Metal insert positioning
- Surface quality inspection
Performance Testing
- Pressure sealing test
- Compression performance test
- Simulation of drilling conditions
Applications
SD Hydril Annular BOP Packing Elements are used in:
Oil & Gas Drilling
Providing reliable well control during:
- Exploration drilling
- Development drilling
- Deep well drilling
Workover Operations
Suitable for:
- Well intervention
- Pressure control
- Completion operations
Offshore Drilling
Designed for:
- Jack-up rigs
- Semi-submersible rigs
- Offshore drilling platforms
Why Choose SD Hydril Annular BOP Packing Element?
Direct Oilfield Equipment Manufacturer
SD Hydril specializes in:
- BOP Parts
- Annular BOP Components
- Ram BOP Parts
- Mud Pump Parts
- Wellhead Equipment
- Drilling Equipment
OEM Replacement Capability
We provide:
- OEM equivalent dimensions
- Customized drawings
- Small and bulk quantity supply
- Global export service
Worldwide Supply
Our BOP components are supplied to customers in:
- North America
- South America
- Middle East
- Africa
- Central Asia
- Southeast Asia
FAQ
Q: Are your packing elements interchangeable with Hydril BOP?
Yes. SD Hydril supplies replacement packing elements compatible with Hydril and other major annular BOP systems.
Q: What is the difference between spherical and tapered packing elements?
Spherical packing elements provide stronger radial sealing force, while tapered packing elements reduce friction and wear during operation.
Q: What standards do your packing elements meet?
Our packing elements are manufactured according to API 16A requirements.
Q: Can you provide customized packing elements?
Yes. Customized sizes, rubber compounds, pressure ratings, and OEM replacement designs are available.
Request A Quote
Looking for reliable Annular BOP Packing Elements for drilling operations?
Contact SD Hydril for:
- OEM replacement solutions
- API 16A BOP components
- Competitive pricing
- Technical support
