Description

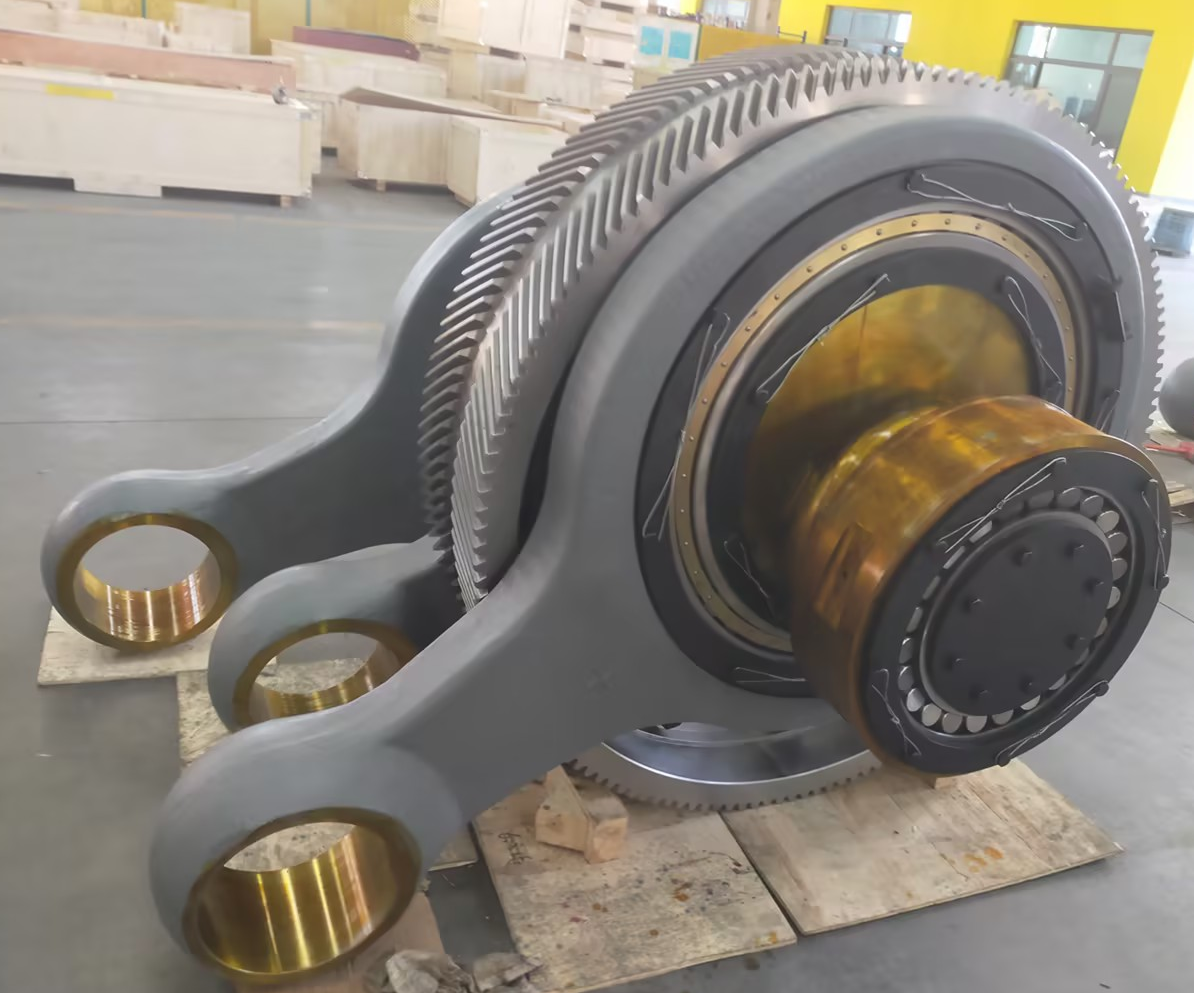

Mud Pump Crankshaft Assembly
Shandong Hydril Machinery Co., Ltd. supplies crankshaft assemblies and replacement components for oilfield drilling mud pumps. Designed for use in mud pump power-end systems, the crankshaft assembly transfers rotational power through the drive mechanism to support the reciprocating motion of the pump.
We support customers looking for replacement crankshaft assemblies and related power-end components for drilling equipment maintenance, overhaul, and repair. Product selection can be based on the mud pump model, OEM part number, technical drawings, and dimensional requirements.
EMSCO:
F500, F800, F1000, FB1300, FB1600
GARDEN DENVER:
PAH, TEE-5, PZ-7, PZ-8, PZ-9, PZ-10, PZ-11
NATIONAL:
JWS165/340, JWS400, 7-P-50, 8-P-80, 9-P-100, 10-P-130, 12-P-160
OILWELL:
A-560-PT, A-600-PT, A-850-PT, A-1100-PT, A-1400-PT, A-1700-PT
IDECO:
T500, T800, T1000, T1300, T1600
F-SERIES:
F500, F800, F1000, F1300, F1600, F1600L, F1600HL
3NB-SERIES :
3NB-500, 3NB-800, 3NB-1000, 3NB-1300, 3NB-1600
Product Highlights
Crankshaft assemblies for oilfield drilling mud pumps
Replacement solutions based on equipment models and specifications
Support for dimensional verification and drawing-based inquiries
Related mud pump power-end spare parts available
Technical documentation available upon request, subject to product availability
Crankshaft Assembly for Mud Pumps
The crankshaft is a key component of a mud pump power end. Working with the connecting rods and crossheads, it converts rotary motion into reciprocating motion to drive the fluid-end system.
A suitable replacement crankshaft assembly must match the original equipment’s dimensions, bearing arrangement, gear configuration, shaft connections, and installation requirements.
Shandong Hydril can assist customers in identifying the appropriate replacement assembly based on equipment information and the required operating specifications.

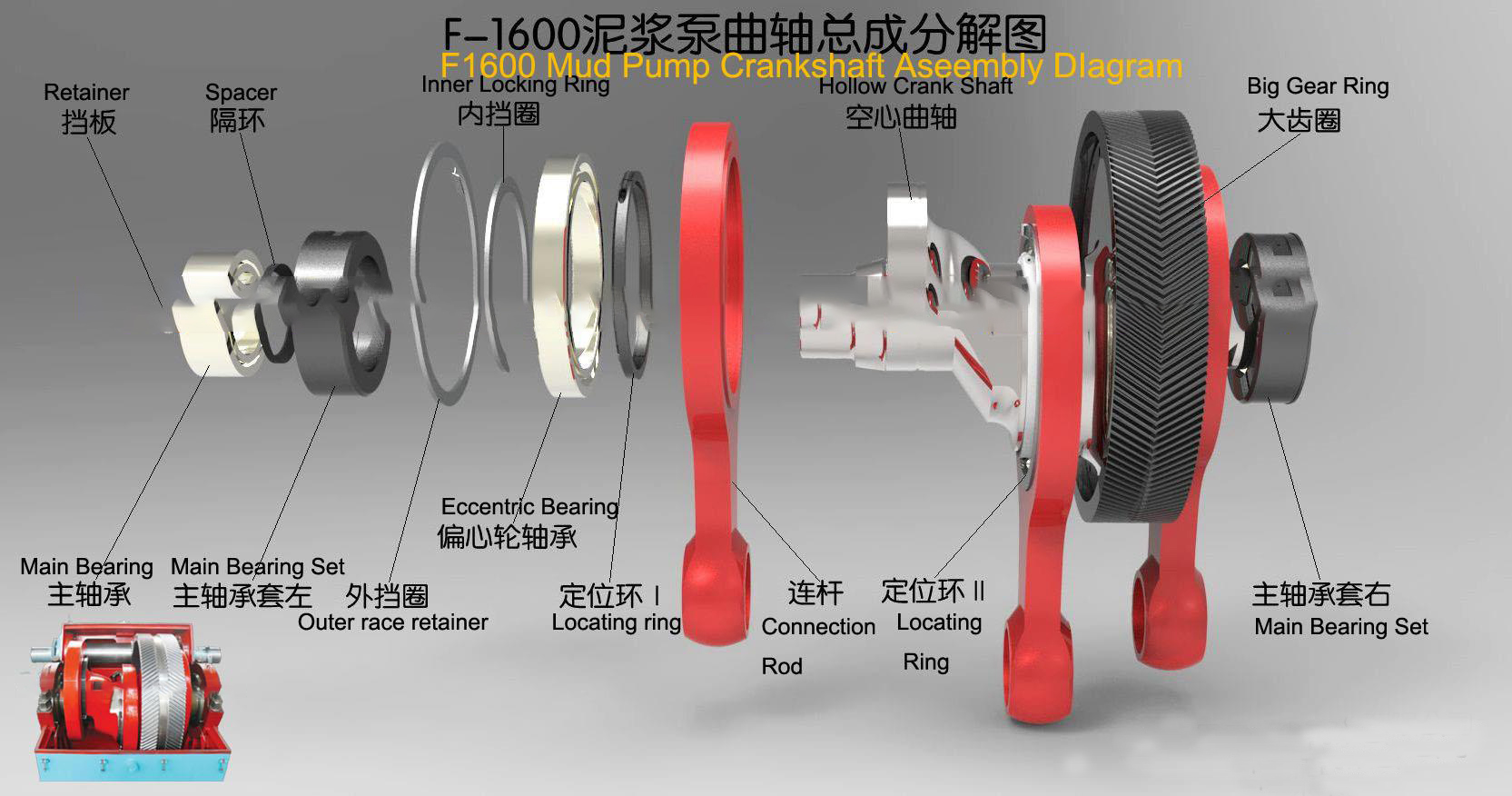

Product Configuration
Crankshaft assemblies can differ according to mud pump model and design. Depending on the equipment configuration, the assembly and associated replacement parts may include:
Crankshaft
Main bearing journals and bearing interfaces
Connecting gear or drive gear, where applicable
Related mounting and connection components
Associated power-end replacement parts
The exact scope of supply should be confirmed against the relevant assembly drawing and bill of materials.
Material and Manufacturing Requirements
Material selection and manufacturing requirements depend on the original equipment design and the customer’s technical specifications.
Important items for confirmation include:
Material grade and material certification requirements
Shaft dimensions and tolerances
Journal surface finish and hardness requirements
Heat treatment requirements, where specified
Gear dimensions and tooth specifications, where applicable
Inspection and documentation requirements
Material grades, hardness values, and manufacturing tolerances should be confirmed for the specific crankshaft model before ordering.
Technical Specifications
Each crankshaft assembly should be selected according to the corresponding mud pump model and technical drawing.
to approved specification
Documentation
Available upon confirmation
Customers are welcome to provide their existing part number, assembly drawing, or equipment nameplate to verify compatibility.
Applications
Mud pump crankshaft assemblies are used in maintenance and overhaul programs for oilfield drilling equipment.
Typical applications include:
Drilling rig mud pump maintenance
Mud pump power-end overhaul
Replacement of worn or damaged crankshaft assemblies
Drilling equipment repair and refurbishment
Spare parts procurement for drilling contractors and oilfield service companies
How to Select the Correct Crankshaft Assembly
Before placing an order, customers should confirm the following information:
Mud pump manufacturer and model.
Original crankshaft assembly part number, if available.
Assembly drawing or key dimensions.
Gear configuration and bearing specifications.
Required quantity and delivery destination.
Providing these details helps reduce the risk of dimensional mismatch and incorrect part selection.
Frequently Asked Questions
Q1: Can you supply a replacement crankshaft assembly for an existing mud pump?
Yes. Please provide the mud pump model, part number, or technical drawing so that the required configuration can be reviewed.
Q2: Can you supply crankshaft assemblies according to customer drawings?
Drawing-based inquiries can be reviewed according to the available manufacturing and sourcing capabilities. Please submit the drawing and technical requirements for evaluation.
Q3: What information is required for a quotation?
The preferred information includes the pump model, part number, drawing, quantity, material requirements, and destination country.
Q4: Can related mud pump power-end parts also be supplied?
Please provide your required parts list. Related power-end components can be reviewed together to help coordinate spare parts procurement.
Request a Quote for Mud Pump Crankshaft Assembly
Looking for a crankshaft assembly or replacement parts for your drilling mud pump?
Contact Shandong Hydril Machinery Co., Ltd. with your part number, drawing, equipment model, or inquiry list.
Our team will review your requirements and assist with product identification, technical confirmation, and quotation.
Contact: info@sdhydril.com
Website: www.sdhydril.com
