Mud Pump Valve

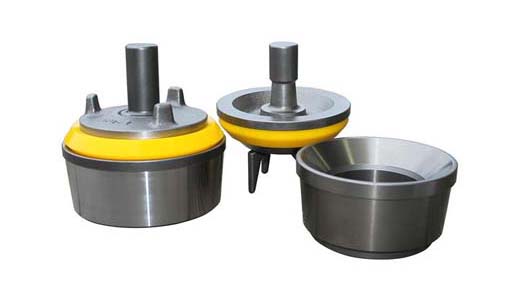

API 7K Mud Pump Valve & Seat Assembly for Oilfield Drilling Pumps
SD Hydril provides high-quality mud pump valve assemblies and valve seat kits for oilfield drilling applications. Our mud pump valves are manufactured from premium alloy steel with advanced forging, heat treatment, and CNC machining processes to ensure high strength, excellent wear resistance, and long service life under high-pressure drilling conditions.
Our mud pump valve assemblies are fully interchangeable with major drilling mud pump brands, including National, Gardner Denver, EMSCO, Oilwell, BOMCO, Honghua, NOV, Wirth, and other commonly used triplex mud pumps.
Mud Pump Valve Assembly Structure
A complete mud pump valve assembly normally includes:
- Valve Body
- Valve Seat
- Valve Insert / Valve Rubber
- Retainer
The valve assembly controls the suction and discharge process inside the mud pump fluid end. During drilling operations, the valve repeatedly opens and closes under high pressure, making wear resistance and dimensional accuracy critical for reliable pump performance.
Product Features
High Strength Alloy Steel Construction
Mud pump valves are manufactured from high-quality alloy steel such as AISI 4119 / Cr-Mo alloy steel with forging technology, providing:
- High mechanical strength
- Excellent impact resistance
- Superior fatigue resistance
- Long operating life
Precision CNC Machining
Advanced CNC machining ensures accurate matching between:
- Valve body
- Valve seat
- Valve insert
The precise sealing surface improves:
- Pressure holding capability
- Pump efficiency
- Valve service life
Wear Resistant Surface Treatment
Special heat treatment and carburizing processes provide:
- Hardened wear surfaces
- Improved abrasion resistance
- Better performance in abrasive drilling fluids
Interchangeable Design
SD Hydril mud pump valves are designed as direct replacements for:
- Original OEM valve assemblies
- Common aftermarket valve systems
No modification is required during installation.
Technical Specifications
| Item | Specification |
|---|---|
| Product Name | Mud Pump Valve & Seat Assembly |
| Standard | API 7K |
| Material | Alloy Steel / Cr-Mo Steel |
| Manufacturing Process | Forging + Heat Treatment + CNC Machining |
| Valve Type | Roughneck Valve, Three-Web Valve, Four-Web Valve |
| Working Pressure | Up to 7,500 PSI |
| Application | Oil & Gas Drilling Mud Pump |
| Surface Treatment | Carburizing / Hardening Treatment |
Available Mud Pump Valve Types
Roughneck Valve
Heavy-duty valve design for demanding drilling operations.
Suitable for:
- High-pressure drilling
- Deep well applications
- Abrasive drilling fluids
Three-Web Valve
Commonly used valve design with optimized flow performance.
Features:
- Stable operation
- Good sealing performance
- Easy replacement
Four-Web Valve
Designed for heavy-duty drilling environments.
Advantages:
- Higher load capacity
- Improved structural strength
- Longer service life
Compatible Mud Pump Brands
SD Hydril supplies replacement valves compatible with:
- National Oilwell
- Gardner Denver
- EMSCO
- Oilwell
- BOMCO
- Honghua
- NOV
- Wirth
- Drillmec
- Rongsheng
- TSC
- Other API 7K drilling pumps
Application
Mud pump valve assemblies are widely used in:
- Land drilling rigs
- Offshore drilling rigs
- Oil well drilling
- Gas well drilling
- Workover operations
- Mining drilling applications
They are installed in the fluid end module of triplex and duplex drilling mud pumps to control drilling fluid circulation.
Why Choose SD Hydril Mud Pump Valve?
Professional Oilfield Equipment Manufacturer
SD Hydril specializes in supplying:
- Mud Pump Parts
- Fluid End Modules
- Mud Pump Liners
- Pistons
- Valves & Seats
- Drilling Equipment Components
Quality Control
Each valve assembly is inspected through:
- Material inspection
- Dimension inspection
- Hardness testing
- Pressure testing
- Surface quality inspection
Global Replacement Supply
Our products are exported to:
- North America
- South America
- Middle East
- Africa
- Central Asia
- Southeast Asia
Providing reliable aftermarket solutions for drilling contractors and oilfield service companies worldwide.
FAQ
Q: Are your mud pump valves interchangeable with OEM products?
Yes. Our mud pump valves are designed according to API standards and are interchangeable with many popular drilling mud pump brands.
Q: What material is used for mud pump valves?
Most valve bodies and seats are manufactured from high-strength alloy steel such as AISI 4119 / Cr-Mo steel.
Q: What mud pump models can you supply valves for?
We supply valves for F-series, 3NB-series, EMSCO, National, Gardner Denver, BOMCO, Honghua, NOV and other common drilling pumps.
Request A Quote
Looking for reliable mud pump valve and seat assemblies?
Contact SD Hydril today for:
- OEM replacement parts
- Custom valve solutions
- Bulk supply pricing
- Technical support
