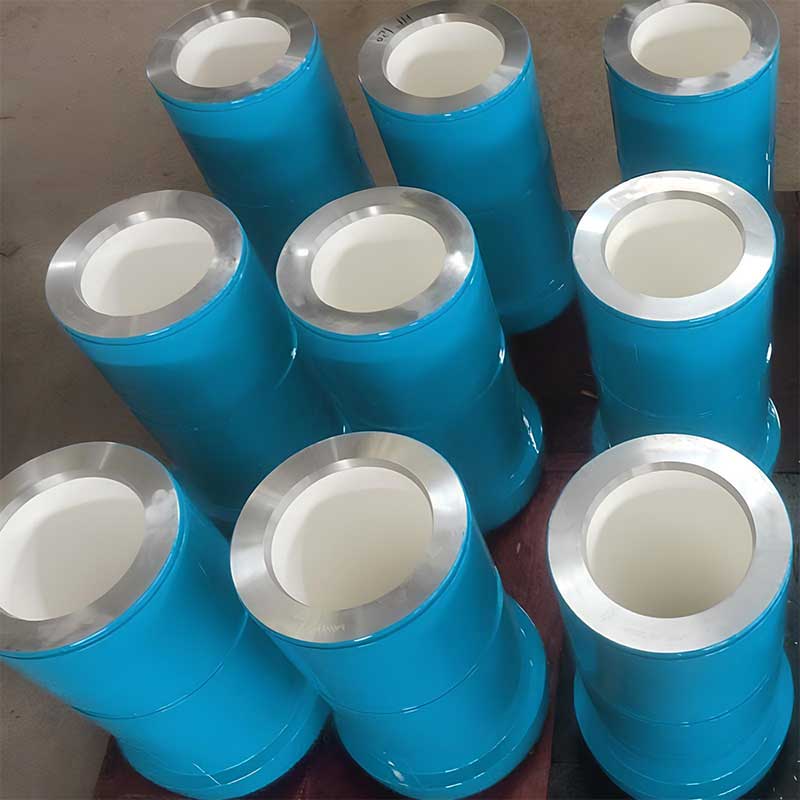

Ceramic Liners for Oilfield Drilling Mud Pumps
Shandong Hydril Machinery Co., Ltd. supplies ceramic mud pump liners for oilfield drilling and mud circulation applications. Designed for demanding drilling environments, ceramic liners offer high wear resistance and are suitable for applications where abrasive drilling fluids and extended operating life are important considerations.
We support replacement liner requirements for drilling contractors, oilfield service companies, mud pump maintenance teams, and equipment distributors. Product selection is based on pump model, liner bore size, pressure rating, dimensional requirements, and operating conditions.
Key Features
- Ceramic liner solutions for drilling mud pumps
- Wear-resistant ceramic inner surface
- Suitable for evaluating abrasive drilling fluid applications
- Replacement options for different mud pump models
- Technical specifications and dimensions confirmed for each order
- Support for model identification and drawing-based inquiries
Request a Quote: Send us your mud pump model, liner size, part number, or technical drawing for product verification.
Ceramic Mud Pump Liner Description
Ceramic mud pump liners are used in the fluid-end system of drilling mud pumps. The liner provides the working surface for the piston during reciprocating operation and helps contain drilling fluid under pressure.
Compared with conventional liner materials, ceramic-lined designs can offer excellent resistance to abrasive wear. Actual service life depends on ceramic composition, drilling fluid characteristics, solids content, operating pressure, piston selection, lubrication, and maintenance practices.
Selecting the correct liner requires matching the liner dimensions and configuration to the mud pump and its operating conditions.
Ceramic Mud Pump Liner Specifications
| Parameter | Ceramic Liners |
|---|---|
| Material | Zirconia-based Ceramic + AISI 1045 steel |
| Hardness | HRC > 90 |
| Service Life | 2000–4000+ hours |
| Max Operating Pressure | 7500 psi (52 MPa) |
| Operating Temperature | 20–350°F (–6.7 to 176.7°C) |
| pH Range | 2–14 |
| Applications | Oil & gas drilling, HTHP wells, abrasive muds |
| Compatible Pumps | F-series, 3NB, PZ, UNBT, UBT, and others |
| Customization | Available per client drawing |
For accurate selection, please provide the required bore size, mud pump model, pressure rating, and operating conditions.
Ceramic Material and Wear Resistance
The ceramic liner’s wear performance depends on its ceramic composition, manufacturing quality, surface finish, and bonding or assembly design.
Important material and quality considerations include:
- Ceramic composition and material grade
- Ceramic density and microstructure
- Inner bore dimensional accuracy
- Surface finish and wear resistance
- Ceramic-to-metal interface integrity, where applicable
- Inspection and dimensional verification
Material certificates and inspection documentation can be discussed according to the product and order requirements.
Applications
Ceramic mud pump liners may be considered for:
- Oil and gas drilling operations
- Drilling mud circulation systems
- Abrasive drilling fluid applications
- Mud pump maintenance and overhaul
- Replacement of worn fluid-end components
- Spare parts supply for drilling contractors and oilfield service companies
The suitability of a ceramic liner should be evaluated against the actual drilling fluid, pump configuration, and operating conditions.
How to Select the Right Ceramic Liner
To help identify a suitable replacement, please provide:
- Mud pump manufacturer and model.
- Required liner bore size.
- Existing liner part number or drawing, if available.
- Required operating pressure.
- Drilling fluid characteristics and operating conditions.
- Required quantity and destination country.
Our team can review the available specifications and help identify the appropriate liner configuration.
Frequently Asked Questions
Q1: What is a ceramic mud pump liner used for?
It forms the working bore in the mud pump fluid-end system and supports reciprocating piston operation during drilling fluid circulation.
Q2: What are the advantages of ceramic liners?
Ceramic materials can provide high hardness and excellent abrasive wear resistance. Actual performance depends on the ceramic grade, liner construction, and operating conditions.
Q3: How do I confirm compatibility with my mud pump?
Provide the pump model, bore size, existing part number, or technical drawing. Dimensions and operating requirements should be verified before ordering.
Q4: Can you supply different liner sizes?
Please send your required sizes and pump model for confirmation of available configurations.
Q5: What information is needed for a quotation?
The most useful information includes the pump model, bore size, required quantity, pressure rating, technical drawing, and delivery destination.
Request a Quote for Ceramic Mud Pump Liners
Looking for ceramic mud pump liners for your drilling equipment?
Contact Shandong Hydril Machinery Co., Ltd. with your required liner size, pump model, part number, or inquiry list.
We will review your requirements and assist with product identification, technical confirmation, and quotation.
